Tumor Tissue Microarrays (TMAs): A High-Throughput Engine for Cancer Research

This blog post was written by Crown Bioscience, a global contract research organization (CRO) providing discovery, preclinical and translational platforms to advance oncology and immuno-oncology. Their services are available on Scientist.com.

Tumor Tissue Microarrays (TMAs) have revolutionized cancer research, offering a high-throughput, systematic and cost-effective platform for analyzing hundreds of tumor samples simultaneously. This innovation addresses the limitations of traditional tissue analysis, which are often labor-intensive, expensive and limited by sample availability.

What Are TMAs and How Are They Made?

A TMA consists of small tissue core samples, typically 0.6 – 2 mm in diameter, extracted from various tumor specimens (or experimental models) and embedded into a single paraffin block in a grid-like arrangement. This allows for the simultaneous analysis of multiple specimens under uniform experimental conditions.

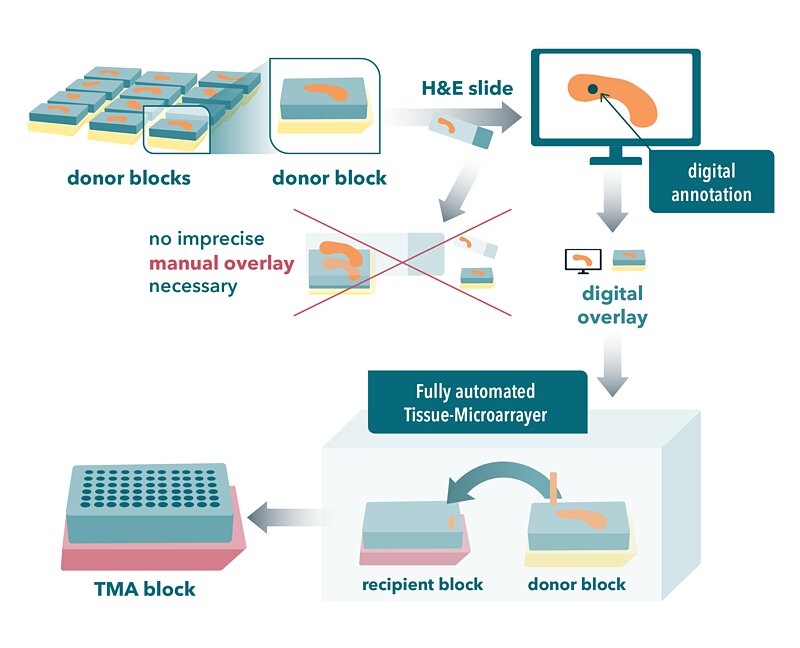

The construction process involves:

1. Selection of Donor Tissue Blocks: Researchers choose representative tumor samples from biobanks, ensuring availability of associated clinical data. These can include normal tissue, primary tumors and metastatic lesions for comparative studies.
2. Tissue Core Extraction: A specialized instrument, the tissue microarrayer, extracts small cylindrical cores from the selected donor blocks, ensuring they represent key histopathological features.
3. Arrangement into a Recipient Block: The extracted cores are systematically arranged into a new paraffin block in a predefined pattern, allowing each core to be uniquely identified and correlated with clinical data.
4. Sectioning and Slide Preparation: Thin sections (4 – 5 µm) are cut from the TMA block and mounted onto glass slides for analysis, with multiple sections available for repeated testing.
5. Analysis: TMA slides undergo various analytical techniques, including Immunohistochemistry (IHC) for protein expression, Fluorescence in situ hybridization (FISH) for gene amplification, RNA in situ hybridization (RNA-ISH) for transcriptomic analysis and Next-Generation Sequencing (NGS) or Polymerase Chain Reaction (PCR) for genetic profiling.

Source: Werry, J.-E.; Müller, S.; Wehrhan, F.; Geppert, C.; Frohwitter, G.; Ries, J.; Kämmerer, P.W.; Moest, T.; Lutz, R.; Homm, A.; et al. Accuracy Analysis of a Next-Generation Tissue Microarray on Various Soft Tissue Samples of Wistar Rats. Appl. Sci. 2021, 11, 5589. https://doi.org/ 10.3390/app11125589

Key Advantages for Researchers:

TMAs offer significant benefits over traditional methods.

• High-Throughput Analysis: Researchers can study hundreds of samples simultaneously, which is ideal for large-scale biomarker validation and cancer studies.
• Standardization and Reproducibility: All samples within a TMA undergo identical experimental conditions, significantly reducing variability compared to individual slide analysis.
• Cost and Time Efficiency: TMAs minimize reagent usage and processing time, lowering overall research costs by consolidating multiple samples onto a single slide.
• Enhanced Statistical Power: The inclusion of numerous tumor samples improves the statistical robustness of findings, enabling statistically significant insights into biomarker prevalence and drug response across diverse patient populations.

Addressing Key Researcher Questions and Future Directions:

Beyond their fundamental construction and clear advantages, researchers frequently delve into the practical challenges and evolving capabilities of TMAs in specific research contexts. One critical area of discussion revolves around tumor heterogeneity and how TMAs can account for the variability within a single tumor or across different patient samples. While TMAs offer a standardized approach, the small size of the tissue cores (typically 0.6 – 2 mm) means they represent only a snapshot of the tumor. This raises concerns about whether a single core accurately captures the full spectrum of molecular features, especially in highly heterogeneous tumors.

However, researchers often mitigate this by taking multiple cores from different regions of the same tumor or by including multiple cases for a given tumor type to increase representation and statistical power. Furthermore, advancements in digital pathology and AI-driven image analysis are increasingly being integrated with TMAs to provide more comprehensive and unbiased interpretation of heterogeneous samples.

Another key question for researchers focuses on the integration of TMAs with cutting-edge technologies and their future trajectory. TMAs are no longer limited to basic immunohistochemistry or FISH. Modern applications leverage advanced techniques like RNA-ISH for transcriptomic analysis and NGS or PCR for in-depth genomic profiling. The advent of multiplexed imaging technologies, such as the NanoString GeoMx® Digital Spatial Profiler (DSP), is particularly exciting for researchers. This technology enables high-plex, spatially resolved protein analysis directly within TMA cores, allowing for detailed characterization of the tumor microenvironment while preserving crucial architectural context.

For example, NanoString GeoMx® DSP further enhances TMA analysis by enabling high-plex, spatially resolved protein quantification (over 570 targets) from TMA sections, preserving architectural context while providing high-throughput data. Such integration helps researchers to investigate complex biological questions with greater precision and throughput.

Finally, researchers often inquire about the applicability of TMAs to niche areas like rare cancers and their role in the regulatory landscape of drug development. For rare and understudied cancers, where sample availability is a significant hurdle for traditional analysis, TMAs offer a unique solution by allowing researchers to pool limited tumor samples from diverse sources into a single array. This significantly facilitates comparative analysis across multiple rare cancer types, as exemplified by their instrumental role in profiling pediatric cancers.

From a regulatory perspective, TMAs are increasingly recognized as a “gold standard” for biomarker validation. Regulatory agencies like the FDA and EMA are evaluating their role in companion diagnostics, ensuring that biomarkers identified through TMAs can reliably guide clinical decision-making and streamline drug approval processes. This widespread adoption underscores the growing trust in TMAs as a reliable and efficient platform for translational oncology.

Importance and Applications in Cancer Research:

TMAs are indispensable for modern oncology research, diagnostics and precision medicine.

• Biomarker Discovery: They facilitate high-throughput screening and validation of molecular indicators for cancer diagnosis, prognosis and treatment selection. They allow correlation of molecular findings with clinical data.
• Drug Development: TMAs are crucial for identifying therapeutic targets, assessing treatment response and evaluating drug efficacy and resistance mechanisms. They help in screening for novel drug targets by profiling tumor heterogeneity and validating their relevance.
• Personalized Medicine: TMAs enable patient stratification for clinical trials and targeted therapies based on molecular and genetic profiles, ensuring treatments are tailored to individual patients. For example, TMAs have been used to identify HER2-positive breast cancer patients for targeted therapies.
• Immunotherapy: TMAs are essential for evaluating biomarkers like PD-L1 to predict response to immune checkpoint inhibitors and develop combination therapy strategies.
• Rare Cancers: TMAs offer a unique advantage in studying rare cancers where sample availability is limited, allowing researchers to pool samples for comparative analysis.

TMAs are continually evolving, integrating with AI-driven image analysis, digital pathology and multiplexed molecular assays to address challenges like tumor heterogeneity. As a cornerstone technology, TMAs will continue to drive precise, efficient and impactful discoveries, leading to better-targeted therapies and improved patient outcomes worldwide.

Crown Bioscience offers multiple formalin fixed, paraffin embedded (FFPE) TMAs from our Patient-Derived Xenograft (PDX) models, as well as TMAs from our Cell Line Derived Xenograft, syngeneic and murine tumor homograft models. Discover our full offering.
